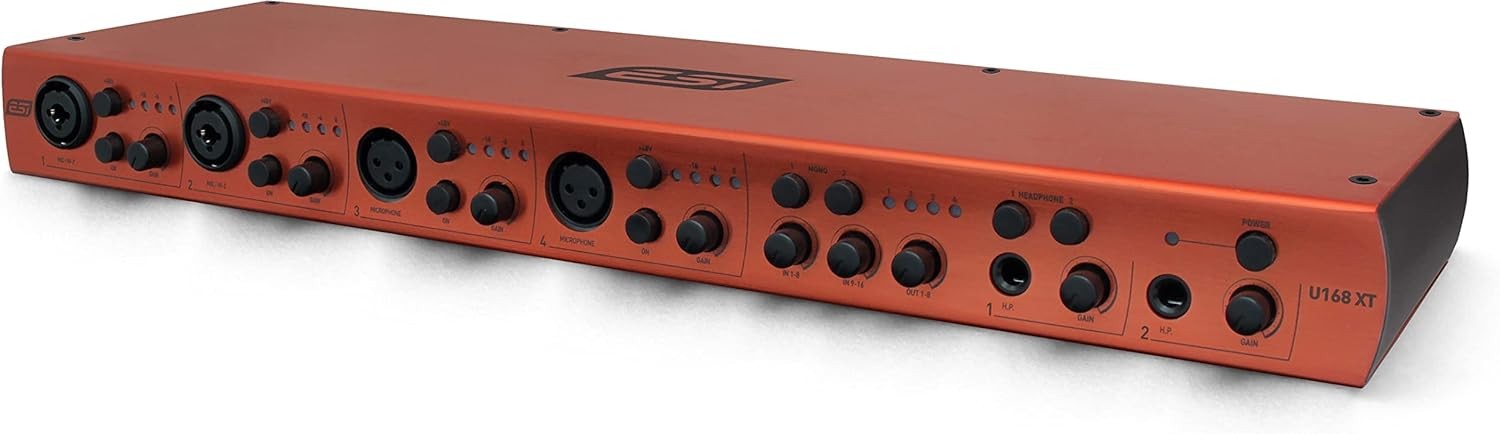

ESI U168 XT | Professional 24-bit USB Audio Interface with 16 Inputs / 8 Outputs

MODEL                                ESI U168 XT

BRAND                                ESI

PRODUCT                           AUDIO INTERFACE

COLOUR                             RED

CONNECT TCH                   USB

WEIGHT                              2.1 Kg

SPECIFICATION

• separate stereo mix output with integrated monitoring mixer controlled on front panel
• DAC with 112dB(a) dynamic range
• 16 input / 8 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface
• 4 professional microphone preamps with +48V phantom power support
• 2 independent headphone outputs with 1/4" stereo phone connector
• ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support 2 Hi-Z high performance  supports Windows Vista, Windows 7, Windows 8.1, Windows 10 and Windows 11 instrument inputs with 1/4" connector
• 16 channel MIDI I/O with one MIDI input and one MIDI output
• powered by included DC power supply
• digital S/PDIF input with RCA connector
• digital S/PDIF output with RCA connector
• supports up to 24-bit / 96kHz
• 16 line inputs with balanced 1/4" TRS connectors
• dimensions roughly 45.0cm x 14.5cm x 12CM
• 8 line outputs with balanced 1/4" TRS connectors
• ADC with 107dB(a) dynamic range
• supports Mac OS X (10.7 and above) via CoreAudio USB audio driver
• includes Bitwig Studio 8-Track digital audio workstation software
• includes license of inTone 2 ESI Edition from Audified

•       फ्रंट पैनल पर नियंत्रित एकीकृत मॉनिटरिंग मिक्सर के साथ अलग स्टीरियो मिक्स आउटपुट

•       112dB(a) डायनामिक रेंज के साथ DAC

•       16 इनपुट / 8 आउटपुट 24-बिट / 96kHz USB 2.0 हाई-स्पीड 24-बिट ऑडियो इंटरफ़ेस

•       +48V फैंटम पावर सपोर्ट के साथ 4 पेशेवर माइक्रोफोन प्रीएम्प्स

•       1/4" स्टीरियो फ़ोन कनेक्टर के साथ 2 स्वतंत्र हेडफ़ोन आउटपुट

•       ASIO 2.0, MME, WDM और DirectSound शामिल हैं। DirectWIRE समर्थन 2 Hi-Z उच्च प्रदर्शन 1/4" कनेक्टर के साथ Windows Vista, Windows 7, Windows 8.1, Windows 10 और Windows 11 उपकरण इनपुट का समर्थन करता है

•       एक मिडी इनपुट और एक मिडी आउटपुट के साथ 16 चैनल मिडी I/O

•       शामिल डीसी बिजली आपूर्ति द्वारा संचालित

•       आरसीए कनेक्टर के साथ डिजिटल एस/पीडीआईएफ इनपुट

•       आरसीए कनेक्टर के साथ डिजिटल एस/पीडीआईएफ आउटपुट

•       24-बिट/96kHz तक सपोर्ट करता है

•       संतुलित 1/4" टीआरएस कनेक्टर के साथ 16 लाइन इनपुट

•       आयाम लगभग 45.0 सेमी x 14.5 सेमी x 12 सेमी

•       संतुलित 1/4" टीआरएस कनेक्टर के साथ 8 लाइन आउटपुट

•       107dB(a) डायनामिक रेंज के साथ ADC

•       CoreAudio USB ऑडियो ड्राइवर के माध्यम से Mac OS X (10.7 और ऊपर) का समर्थन करता है

•       बिटविग स्टूडियो 8-ट्रैक डिजिटल ऑडियो वर्कस्टेशन सॉफ्टवेयर शामिल है

•       ऑडिफाइड से इनटोन 2 ईएसआई संस्करण का लाइसेंस शामिल है
