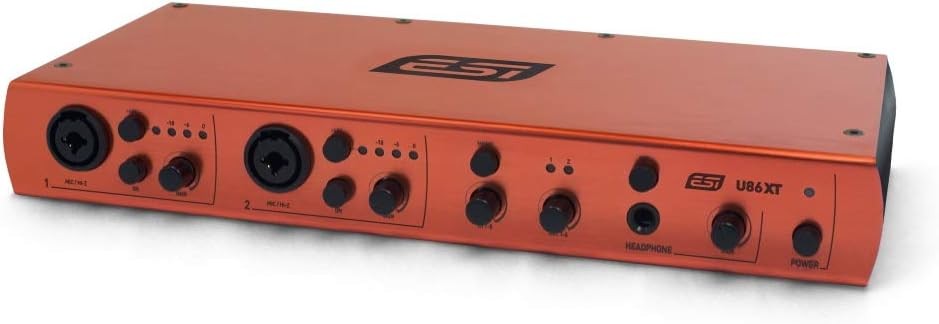

ESI U86XT [8IN / 6OUT Professional 24bit USB Audio Interface] U86XT

MODEL                                ESI U86XT

BRAND                                ESI

PRODUCT                           AUDIO INTERFACE

COLOUR                             RED

CONNECT TCH                   USB

SPECIFICATION

• separate stereo mix output with integrated monitoring mixer controlled on front panel
• 8 input / 6 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface
• 8 line inputs with balanced 1/4" TRS connectors
• digital S/PDIF output with RCA connector
• 2 professional microphone preamps with +48V phantom power support
• 2 Hi-Z high performance instrument inputs with 1/4" connector
• 16 channel MIDI I/O with one MIDI input and one MIDI output
• professional headphone output with 1/4" stereo phone connector
• ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
• digital S/PDIF input with RCA connector
• supports up to 24-bit / 96kHz
• 6 line outputs with balanced 1/4" TRS connectors
• ADC with 107dB(a) dynamic range
• dimensions roughly 31.0cm x 14.5cm x 4.5cm
• DAC with 112dB(a) dynamic range
• powered by included DC power supply
• supports Mac OS X (10.7 and above) via CoreAudio USB audio driver
• includes Bitwig Studio 8-Track digital audio workstation software
• includes license of inTone 2 ESI Edition from Audified

•       फ्रंट पैनल पर नियंत्रित एकीकृत मॉनिटरिंग मिक्सर के साथ अलग स्टीरियो मिक्स आउटपुट

•       8 इनपुट / 6 आउटपुट 24-बिट / 96kHz USB 2.0 हाई-स्पीड 24-बिट ऑडियो इंटरफ़ेस

•       संतुलित 1/4" टीआरएस कनेक्टर के साथ 8 लाइन इनपुट

•       आरसीए कनेक्टर के साथ डिजिटल एस/पीडीआईएफ आउटपुट

•       +48V फैंटम पावर समर्थन के साथ 2 पेशेवर माइक्रोफोन प्रीएम्प्स

•       1/4" कनेक्टर के साथ 2 हाई-जेड उच्च प्रदर्शन उपकरण इनपुट

•       एक मिडी इनपुट और एक मिडी आउटपुट के साथ 16 चैनल मिडी I/O

•       1/4" स्टीरियो फ़ोन कनेक्टर के साथ पेशेवर हेडफ़ोन आउटपुट

•       ASIO 2.0, MME, WDM और DirectSound शामिल हैं। डायरेक्टवायर समर्थन

•       आरसीए कनेक्टर के साथ डिजिटल एस/पीडीआईएफ इनपुट

•       24-बिट/96kHz तक सपोर्ट करता है

•       संतुलित 1/4" टीआरएस कनेक्टर के साथ 6 लाइन आउटपुट

•       107dB(a) डायनामिक रेंज के साथ ADC

•       आयाम लगभग 31.0 सेमी x 14.5 सेमी x 4.5 सेमी

•       112dB(a) डायनामिक रेंज के साथ DAC

•       शामिल डीसी बिजली आपूर्ति द्वारा संचालित

•       CoreAudio USB ऑडियो ड्राइवर के माध्यम से Mac OS X (10.7 और ऊपर) का समर्थन करता है

•       बिटविग स्टूडियो 8-ट्रैक डिजिटल ऑडियो वर्कस्टेशन सॉफ्टवेयर शामिल है

•       ऑडिफाइड से इनटोन 2 ईएसआई संस्करण का लाइसेंस शामिल है
