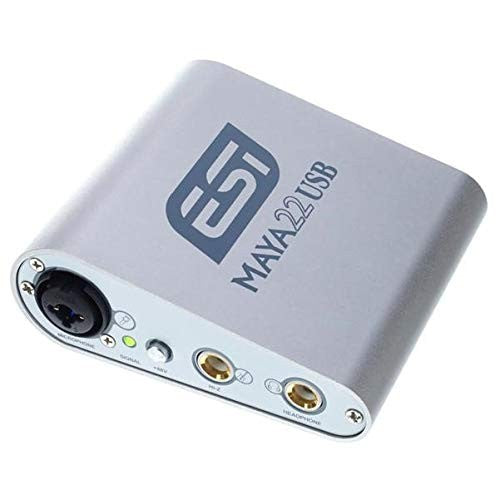

MAYA22 USB Flexible High Performance 24-bit USB Audio Interface

MODEL                                 MAYA22

BRAND                                 ESI AUDIO

PRODUCT                             INTERFACE

COLOUR                               SILVER

USES                                    RECORDING

SPECIFICATION

•          microphone preamp with XLR input and +48V phantom power support

•          ADC with 102dB(a) dynamic range

•          2 input / 2 output 24-bit / 96kHz USB 2.0 Full Speed 24-bit Audio Interface

•          line, guitar and microphone inputs

•          supports Mac OS X (10.4 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)

•          simultaneous recording of microphone and guitar signals

•          Hi-Z instrument input with 1/4" connector

•          USB bus powered

•          line input with RCA connectors

•          line output with balanced 1/4" TRS connectors

•          11 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support

•          headphone output with 1/4" connector

•          DAC with 108dB(a) dynamic range

•          realtime level meters in MAYA22 USB for Windows control panel software

•          dimensions roughly 10.0cm x 10.5cm x 3.7cm

•          XLR इनपुट और +48V फैंटम पावर के साथ माइक्रोफ़ोन प्रीएम्प सहायता

•          102dB(a) डायनामिक रेंज के साथ ADC

•          2 इनपुट / 2 आउटपुट 24-बिट / 96kHz USB 2.0 फुल स्पीड 24-बिट ऑडियो  इंटरफेस

•          लाइन, गिटार और माइक्रोफ़ोन इनपुट

•          मूल CoreAudio के माध्यम से Mac OS X (10.4 और ऊपर) का समर्थन करता है

•          Apple का USB ऑडियो ड्राइवर (कोई ड्राइवर इंस्टॉल आवश्यक नहीं)

•          माइक्रोफ़ोन और गिटार सिग्नल की एक साथ रिकॉर्डिंग

•          1/4" कनेक्टर के साथ हाई-जेड उपकरण इनपुट

•          यूएसबी बस संचालित

•          आरसीए कनेक्टर्स के साथ लाइन इनपुट

•          संतुलित 1/4" टीआरएस कनेक्टर के साथ लाइन आउटपुट

•          • 11 ASIO 2.0, MME, WDM और DirectSound सहित। डायरेक्टवायर   सहायता

•          1/4" कनेक्टर के साथ हेडफ़ोन आउटपुट

•          108dB(a) डायनामिक रेंज के साथ DAC

•          विंडोज कंट्रोल पैनल के लिए MAYA22 USB में रीयलटाइम लेवल मीटर सॉफ़्टवेयर

•          आयाम लगभग 10.0 सेमी x 10.5 सेमी x 3.7 सेमी
