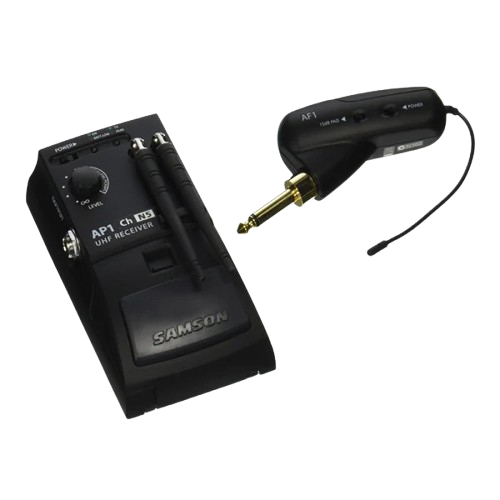

Samson Fender Pedal System (AF1/AP1)

The Samson AirLine AF1/AP1 is a professional wireless guitar system designed specifically for guitars with Fender Stratocaster-style recessed output jacks. It replaces the traditional guitar cable and allows complete freedom of movement on stage.

Main Components

AF1 Transmitter

• Plugs directly into Fender-style recessed guitar jacks.
• No bodypack transmitter required.
• Operates on a single AAA battery.
• Up to 14 hours of battery life.
• Includes a 15 dB pad switch for high-output pickups.

AP1 Pedal Receiver

• Compact pedal-style receiver.
• 1/4-inch output for connection to an amplifier or pedalboard.
• Volume/Level control.
• TX/Peak and Power/Battery LEDs.
• Can run on a 9V battery or optional DC power adapter.
• Dual swivel antennas for improved reception.

Key Features

• UHF wireless operation (801–805 MHz version).
• Clear audio with low interference.
• Lightweight and compact design.
• Wireless range up to approximately 300 feet (line-of-sight).
• Designed for live performance and stage use.
