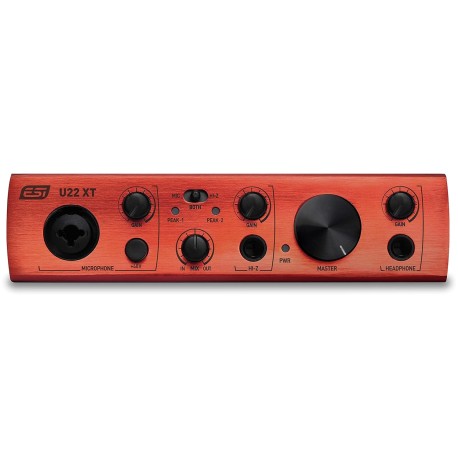

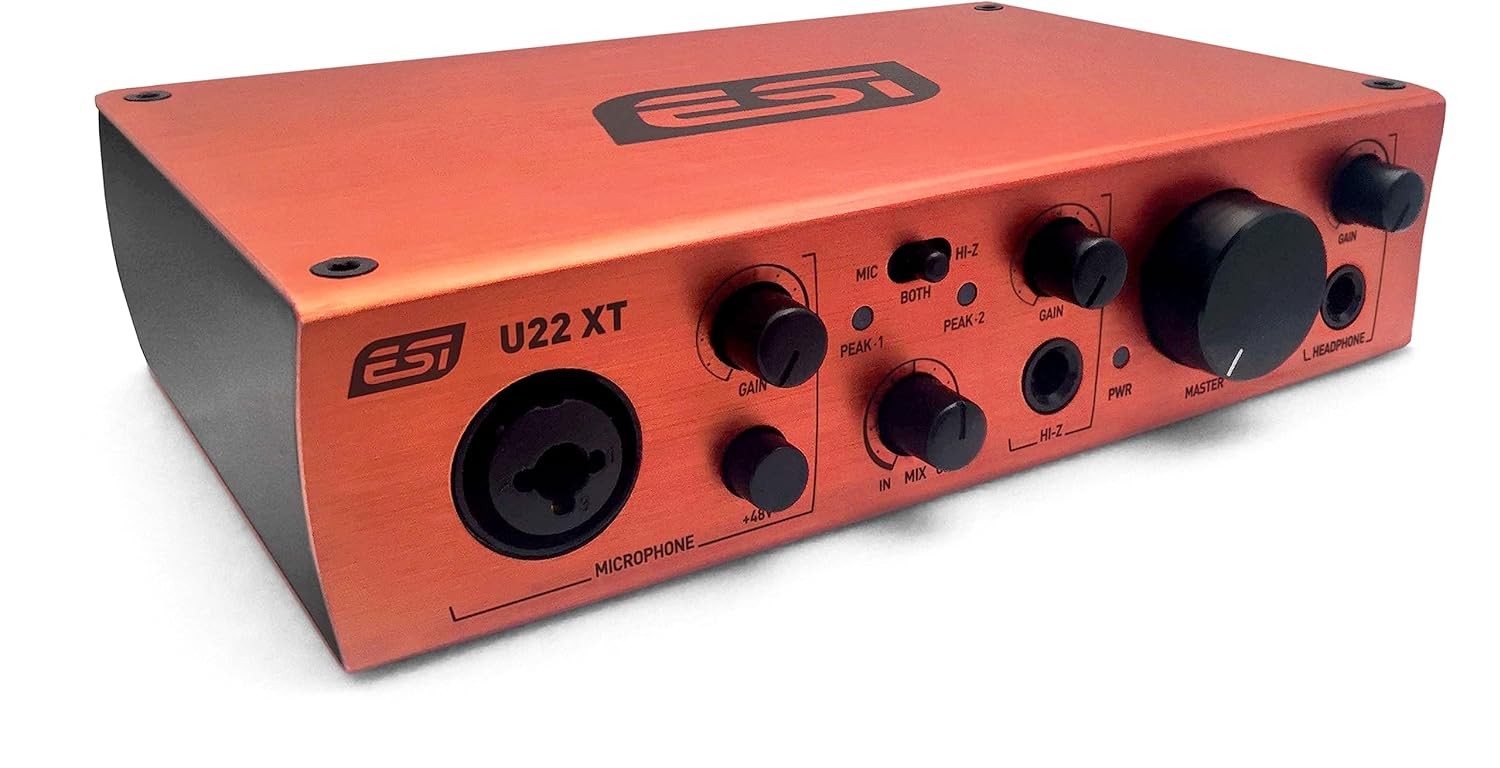

U22 XT Professional 24-bit USB Audio Interface

MODEL                               U22 XT

BRAND                               ESI

PRODUCT                           AUDIO INTERFACE

COLOUR                             RED

CONNECT TCH                   USB

SPECIFICATION

• master volume control on front panel
• line input with RCA connectors
• 2 input / 2 output 24-bit / 96kHz USB 2.0 Audio Interface
• line output with balanced 1/4" TRS connectors
• headphone output with 1/4" connector
• microphone preamp with +48V phantom power support
• supports Windows Vista, Windows 7, Windows 8.1, Windows 10 and Windows 11 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
• Hi-Z instrument input with 1/4" connector
• includes Bitwig Studio 8-Track digital audio workstation software
• USB bus powered
• max. 24bit/96kHz
• ADC with 102dB(a) dynamic range
• DAC with 108dB(a) dynamic range
• input / output monitoring controlled on front panel
• supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)
• supports many Linux distributions via the ALSA USB audio class support
• includes license of inTone 2 ESI Edition from Audified
• dimensions roughly 17.5cm x 12.0cm x 4.5cm

•       फ्रंट पैनल पर मास्टर वॉल्यूम नियंत्रण

•       आरसीए कनेक्टर्स के साथ लाइन इनपुट

•       2 इनपुट / 2 आउटपुट 24-बिट / 96kHz USB 2.0 ऑडियो इंटरफ़ेस

•       संतुलित 1/4" टीआरएस कनेक्टर के साथ लाइन आउटपुट

•       1/4" कनेक्टर के साथ हेडफ़ोन आउटपुट

•       माइक्रोफ़ोन प्रीएम्प +48V फैंटम पावर सपोर्ट के साथ

•       ASIO 2.0, MME, WDM और DirectSound सहित Windows Vista, Windows 7, Windows 8.1, Windows 10 और Windows 11 को सपोर्ट करता है। डायरेक्टवायर समर्थन

•       1/4" कनेक्टर के साथ हाई-जेड उपकरण इनपुट

•       बिटविग स्टूडियो 8-ट्रैक डिजिटल ऑडियो वर्कस्टेशन सॉफ्टवेयर शामिल है

•       यूएसबी बस संचालित

•       अधिकतम. 24 बिट/96 किलोहर्ट्ज़

•       102dB(a) डायनामिक रेंज के साथ ADC

•       108dB(a) डायनामिक रेंज के साथ DAC

•       इनपुट/आउटपुट मॉनिटरिंग फ्रंट पैनल पर नियंत्रित होती है

•       Apple के मूल CoreAudio USB ऑडियो ड्राइवर के माध्यम से Mac OS

•       ALSA USB ऑडियो क्लास समर्थन के माध्यम से कई Linux वितरणों का समर्थन करता है

•       ऑडिफाइड से इनटोन 2 ईएसआई संस्करण का लाइसेंस शामिल है

•       आयाम लगभग 17.5 सेमी x 12.0 सेमी x 4.5 सेमी
